#RS799-8941  #RS PRO Soldering Station, 220V  #RS PRO  #납땜세트 단가 : 370,000 원(VAT별도) https://youtu.be/gELWBkrAwy8 제품 세부 사항 RS Pro Soldering Station This RS PRO soldering station is smart, compact and easy to use. This soldering station is cost-effective and versatile, making it ideal for electronic design, appliance repair and prototyping applications. What’s included? 1 x power unit 1 x soldering iron 1 x soldering iron stand Power Unit The power unit features a backlit LCD screen, allowing you to clearly see the temperature information. You can choose manual temperature selection, or there are three hotkeys with present temperatures for quick and easy temperature selection. This unit also has an automatic sleep mode function which helps prevent unnecessary wear and

#MAC8  #LM_series  #Spacer for LED  #엘이디스페이서 ＬＥＤ용 LED용 스페이서［LM시리즈] (１팩100개입) ＬＥＤ 머리경３φ、５φ 사용 가능한 ＬＥＤ용 스페이서 입니다。 ３본 다리 타잎에도 사용 가능 합니다。 재질・・・・・・열가소성수지(UL94V-0) 색・・・・・・흑 사용온도범위・・・・・・－４０℃～＋１２５℃ 품번 H(mm) LM-1 1 LM-1.5 1.5 LM-2 2 LM-2.5 2.5 LM-3 3 LM-3.5 3.5 LM-4 4 LM-4.5 4.5 LM-5 5 LM-5.5 5.5 LM-6 6 LM-6.5 6.5 LM-7 7 LM-7.5 7.5 품번 H(mm) LM-8 8 LM-8.5 8.5 LM-9 9 LM-9.5 9.5 LM-10 10 LM-11 11 LM-12 12 LM-13 13 LM-14 14 LM-15 15 LM-16 16 LM-17 17 LM-18 18 LM-19 19 LM-20 20 ※사용방법 LED 다리는、양쪽의 구멍 중앙의 구멍, 어느족에 삽입해도 사용 가능합니다。 PDF파일(19KB)

#RS188-3421  #WATERPROOF PAPER 230X280MM 600 GRIT 25PC #RSPRO  #방수지 단가 : 16,500 원(VAT별도) 제품 세부 사항 Suitable for use on Primer, Metal, Paint & Fillers Flexible anti-slip backing paper Popular for use in the automotive industry. 사양 속성 값 Abrasive Material Silicon Carbide Grit Size 600 Sheet Size 280 x 230mm Length 280mm Width 230mm Number of Sheets per Pack 25

#RS188-3419  #WATERPROOF PAPER 230X280MM 240 GRIT 25PC #RSPRO  #방수지  단가 : 16,500 원(VAT별도) 제품 세부 사항 Suitable for use on Primer, Metal, Paint & Fillers Flexible anti-slip backing paper Popular for use in the automotive industry. 사양 속성 값 Abrasive Material Silicon Carbide Grit Size 240 Sheet Size 280 x 230mm Length 280mm Width 230mm Number of Sheets per Pack 25

#RS554-311 #Metal Oxide Thermal Paste, 0.65W/m·K #RSPRO  #히트씽크 단가 : 41,000 원(VAT별도) 제품 세부 사항 RS Pro Heat Sink Compound, 20 ml tube This thermal grease adhesive provides an excellent heat transfer between semiconductor devices and heat sinks. It is based on a silicone oil and therefore offers a wide operating temperature range and excellent stability at high temperatures. Improves electrical isolation when used in the normal way with insulating washers and reduce time lag in thermostats. This heat sink compound is recommended where the efficient and reliable thermal coupling of electrical and electronic components is required, or between any surface where thermal conductivity or heat dissipation is important.

#RS103-0967  #Hirschmann ST Series, IP54 Grey Cable Mount 3P+E Industrial Power Plug, Rated At 16A, 250 V dc, 400 V ac #932143106  #HIRSCHMANN  #파워플러그 단가 : 13,500 원(VAT별도) 제품 세부 사항 Cable Plugs & Sockets These Hirschmann brand cable mounted connectors are robust and compact, ideal for mains and control lead connection. Rated at IP54, they are protected against dust and splashes and approved for world-wide use. Each connector is also vibration proof, and can be assembled as required. Plugs are available with strain relief, safety brackets and in straight or right angle variants. There are also panel mounted and surface mounted socket variants available.

#RS500-1036  #Jumo eTRON Thermostat, 90 x 22.5mm, Thermocouple Input, 115/230 V ac Supply  #701050/821-02  #JUMO  #온도계 단가 : 190,000 원(VAT별도) 제품 세부 사항 EcoTRON T — Digital Thermostat Compact digital thermostat for simple temperature management (for heating or cooling) Three-digit LCD display with special characters for °C and °F Simple operation using three buttons Input depending on type: - Resistance thermometer - Thermocouple - Current Output 1 changeover Adjustable differential gap Limit value monitoring Code-protected parameter level Simply, space-saving assembly Elect.. connection via screw terminals PT100 sensor, protection tube 6 x 50 mm (sold separately), connection lead 2.5 m, silicone, -50 °C → +180 °C Set-up program (for Windows 98/ME/NT4.0/2000/XP) incl. PC interface Configurable within the measurmenet input group see

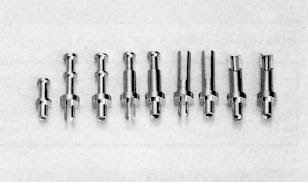

#MAC8  #SB_시리즈  #로직용체크단자 체크용 단자 로직용 체크 단자 [품번SB시리즈] (１팩 1,000개입) 프린트기판 두께3.2ｔ용 프린트기판 두께３．２ｔ에 사용 하는 체크 단자 입니다。 재질････황동 처리････니켈하지 금도금 ■치수표 품번 D1 D2 D3 D4 D5 H 프린트판 취부구멍경 SB-1-1 1.5φ 1.2φ 0.8φ 0.8φ 0.65φ 3.0 0.8φ SB-1-2 1.5 1.2 0.8 0.8 0.65 5.0 0.8 SB-2-1 2.0 1.5 1.0 1.0 0.8 3.5 1.0 SB-2-2 2.0 1.5 1.0 1.0 0.8 6.5 1.0 PDF파일(18KB)

#RS102-002  #Cosel, 50W Embedded Switch Mode Power Supply SMPS, 36V dc, Enclosed  #PBA50F-36-N  #COSEL  #파워_서플라이 단가 : 120,000 원(VAT별도) 제품 세부 사항 PBA Series with Single 50-300W output The PBA series of switch mode power supplies from Cosel are lightweight and incredibly compact. They are 35% to 65% smaller in volume than conventional products of the same type. With a universal input of 85 V ac to 264 V ac, the PBA series of switch mode power supplies is versatile. Features and Benefits: Rated output wattage of 10 W to 1500 W Overcurrent and overvoltage protection Harmonic attenuator

#MAC8  #배선용_단자  #WT시리즈 배선용 배선용단자[WT시리즈] (1팩1,000개입) 전선을 감아 연결하여 배선, 걸어서 배선, 1점 부착으로 배선 CR의 취부와 체크용등에 사용하여 주십시오. 재질........황동 처리........니켈기반 금도금 *칫수표 품번 D 1 D 2 D 3 D 4 H 1 H 2 H 3 프린트판 취부구멍경 압입공구 끝단팁 WT-1-1 2.5 2.0 1.5 1.5 3.95 - 2.35 1.6 　 WT-1-2 3.0 2.0 1.5 1.7 5.35 - 2.35 1.8 WT-1-3 3.5 2.8 1.7 1.9 6.65 - 2.35 2.0 WT-2-1 3.0 2.2 1.3 1.62 8.0 2.5 3.0 1.6 P-7 WT-2-2 3.0 2.2 1.3 1.62 8.0 3.5 3.0 1.6 WT-2-3 4.0 3.0 1.8 2.02 8.5 4.0 3.0 2.0 P-8 WT-2-4 4.0 3.0 1.8 2.02 8.5 4.0 4.5 2.0(판두께3.2t용) WT-3-1 3.0 2.2 1.3 1.7 8.0 2.5 2.5 1.8 　 WT-3-2 3.0 2.2 1.3 1.7 8.0 3.5 2.5 1.8 WT-3-3 4.0 3.0 1.8 1.9 8.5 4.0 2.5 2.0 WT-3-4 4.0 3.0 1.8 1.9 8.5 4.0 4.0 2.0(판두께3.2용) WT-4-1 3.0 2.0 1.3 1.62 8.0 2.5 3.0 1.6 P-7 WT-4-2 3.0 2.0 1.3 1.62 8.0 3.0 3.0 1.6 WT-4-3 3.0 2.0 1.3 1.62 8.0 3.5 3.0 1.6 WT-5-1 3.0 2.0 1.3 1.7 8.0 2.5 2.5 1.8 　 WT-5-2 3.0 2.0 1.3 1.7 8.0 3.0 2.5 1.8 WT-5-3 3.0 2.0 1.3 1.7 8.0 3.5 2.5 1.8 WT-6-1 3.0 2.0 S 1 =0.8 1.62 8.0 5.0 3.0 1.6 P

#RS224-492  #Enclosure Heater, 30W, 140 250 V ac, 65 x 70 x 50mm #04001.0-00  #STEGO  #히터 단가 : 67,000 원(VAT별도) 제품 세부 사항 Convection Large surface area, anodised aluminium heaters with long service life and no mechanical parts. They have class I insulation. Surface mounting clips are available separately. Protected to IP54 Comply with DIN VDE 0700 Part 1 and EN60335/1 Tropicalised Self regulating PCT heating elements 500mm long silicone covered supply leads. Note Below 140Vac/dc heating performance is reduced by approx 10% Mount as shown in photograph

#RS265-6071  #Pepperl + Fuchs, M8 x 1, NPN-NO Inductive Sensor 50mm Length, 10 → 30 V dc supply voltage , IP67 Rating   #NBB2-8GM50-E0  #근접센서 단가 : 145,000 원(VAT별도) 제품 세부 사항 Extended Sensing Range These Pepperl + Fuchs inductive proximity sensors are cylindrical in design and are available with an extended sensing range of up to 30mm to suit a number of different applications. Features and benefits LED indication Embeddable or flush installation IP67 Supply voltage 10 to 30Vdc Short circuit and reverse polarity protection Pre-wired types have 2m PVC cable Plug-in types have M12 type V1 connector

#RS181-1794  #Baumer, M8 x 1, PNP-NO Inductive Sensor 30mm Length, 10 → 30 V dc supply voltage , IP67 Rating #IFRM 08P1701/L  #Baumer  #근접센서 단가 : 155,000 원(VAT별도) 제품 세부 사항 M8 Sensors Features and benefits Stainless steel body 2m PVC Pre-Wired M8 Connector PNP make function (N0) IP67 rating Operating temperatures ranging from -25°C to +75°C

#RS180-796  #890 piece Stainless Steel Screw/Bolt Kit, No. 10, No. 6, No. 8   #RS PRO  #볼트키트 단가 : 110,000 원(VAT별도) 제품 세부 사항 A2 Stainless Steel Cross Recess Pan & Countersunk Head Self Tapping Screw Kit A2 grade 18 / 8 stainless steel (Type 304 S15) Ideal for use in service departments, development and research labs etc Kit contains 890 self tapping screws, supplied in a moulded plastic storage case 사양 속성 값 Number of Pieces 890 Screw/Bolt

#RS124-8953  #Dewalt 18V, 5Ah Li-ion Cordless Drill  #DCD791P2-GB  #DeWALT  #무선_충전드릴 단가 : 830,000 원(VAT별도) 제품 세부 사항 DeWALT 18V XR LI-ION BRUSHLESS COMPACT DRILL DRIVER Introducing the DEWALT DCD791 Brushless Drill Driver that features an ultra-compact, lightweight design making it perfect for use in confined spaces. Brushless Motor Technology for excellent efficiency and a two speed all metal transmission for increased runtime and longer tool life. The DCD791 offers 15 positions, adjustable torque control for consistent screw driving into a variety of materials. Intelligent trigger design allows for total control of the application. It also has an improved ergonomic design with rubber, over-moulded grip, for increased user comfort and safety. The DCD791 is available in three different set options: • 136-2870 - Bare unit on

#RS703-7191  #Recoil 18 piece 1/4-28 Thread Repair Kit  #34048  #RECOIL  #수리키트 단가 : 65.000 원(VAT별도) 제품 세부 사항 Thread Repair Kit, Taps and Inserts Used to repair stripped or damaged threads also suitable for new applications requiring stronger threads and for changing from imperial to metric threads and vice versa. Intermediate HSS second / intermediate tap and an installation tool Ideal for alloys, other light materials and cast iron Standard Kit : Magnetic Tang Break Tool Combo Tap and Installation Tool Drill Ideal for aluminium, magnesium, cast iron and most machinable steels

#RS517-791  #SPDT-NO/NC Short Roller Lever Microswitch, 15 A @ 250 V ac  #GPTCRM01  #ZF  #마이크로_스위치 단가 : 23.000 원(VAT별도) 제품 세부 사항 Cherry GP Series (15A) Available with a wide variety of actuators Ultra small movement differential Fitted with large brass screw terminals Mechanical life of up to 1 million cycles Case & cover material: Phenolic Low operating forces Actuator material: Stainless Metric mounting holes 사양 속성 값 Ac
