#RS812-033 #Legris Pneumatic Straight Threaded-to-Tube Adapter, M5 x 0.8 Male, Push In 4 mm #3101 04 19 #Legris #튜브 아답타

#RS812-033

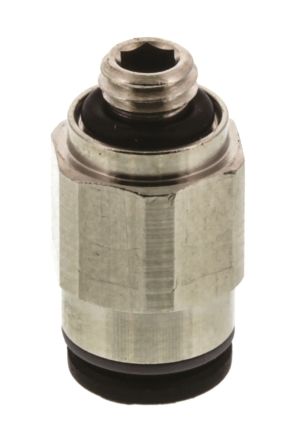

#Legris Pneumatic Straight Threaded-to-Tube Adapter, M5 x 0.8 Male, Push In 4 mm #3101 04 19

#Legris

#튜브 아답타

단가 : 6,500 원(VAT별도)

제품 세부 사항

Straight Adaptor - Male Parallel Thread

A high-quality polymer push in fitting suitable for compressed air applications. The LF3000 fittings can be used in systems with a working pressure from a vacuum of 0.9 bar to a positive pressure of 20 bar. These fittings are suitable for use with all plastic pneumatic plastic tubing and are 100% leak tested during manufacture.
The 3101 fittings allow plastic pneumatic tubing to be connected to threaded ports. They can be tightened with a socket wrench or adjusted using an Allen key internally.

Features and Benefits

Full bore design
Exceptionally low leak rate
Available with BSPP and BSPT threads
Suitable for Vacuum or pressure applications
ISO 14743 compliant
Date coded for traceability and reliability
Automatically seals in both dynamic and static situations

사양

속성	값
Connection Style	Threaded-to-Tube
Connector A	M5
Connector B	Push In 4 mm
Connector A - Gender	Male
Manufacturer Series	3101
Mounting Type	Inline
Body Material	Nickel Plated Brass
Maximum Operating Pressure	20 bar
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C
