#RS383-2018 #Siemens Sentron 6 A MCB Mini Circuit Breaker, 1P Curve C #5SY4106-7 #Siemens #과전류차단기

-

 #RS383-2018

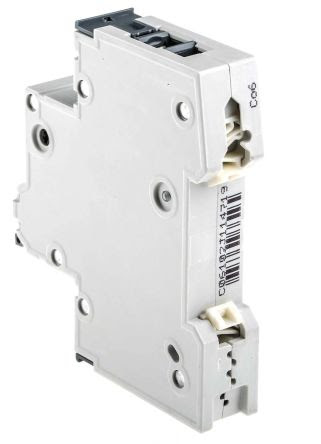

#Siemens Sentron 6 A MCB Mini Circuit Breaker, 1P Curve C

#5SY4106-7

#Siemens

#과전류차단기

단가 : 29,000 원(VAT별도)





제품 세부 사항

Siemens 5SY4 MCBs

The Siemens 5SY4 series are type C MCBs (miniature circuit breakers) rated at 400 V and provide a 10 kA breaking capacity. The range includes 1 or 3 pole options, all featuring reliable high performance and excellent quality.

Standards

Standards: EN 60898; DIN VDE 0641; Part 11; IEC 60898

Standards

EN 60898; DIN VDE 0641; Part 11; IEC 60898

사양
속성값
RangeSentron
Series5SY4
Number of Poles1
Current Rating6 A
Tripping CharacteristicsType C
Rated AC Voltage400 V
Breaking Capacity10 kA
Length89.8mm
Width17.6mm
Depth76.4mm
