#MAC8 #SPACER FOR ADJUSTMENT #TS series #조정용 스페이서

-

 #MAC8

#SPACER FOR ADJUSTMENT

#TS series

#조정용 스페이서






표면실장용(조정용 스페이서)



조정용 스페이서
[TS시리즈] (1팩100개입)

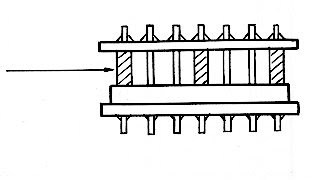

  • ＯＱ－４３、ＨＱ－３、ＭＫシリーズ등을 사용하여 프린트기판을 2단 적재시、양 사이드 및 중심부에 1개씩 붙여서 높이를 일정하게 할 수 있습니다。

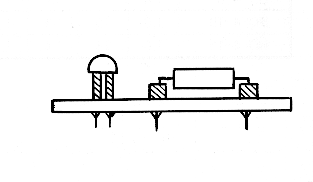

  • 전자부품을 띄우고 싶을때、높이를 일정하게 하고 싶을 때에도 사용 가능합니다。
  • 사용법은 여러가지 가능 합니다。
  • 재질・・・・・・불소수지(UL VW-1) 흑색
  • 내열성・・・・・딮、손납땜、리플로、어느쪽도 가능。
  • 사용온도범위・・・・・・－４０～＋２４０℃
품번L
(mm)
TS-10-0.50.5
TS-10-1.01.0
TS-10-1.51.5
TS-10-2.02.0
TS-10-2.52.5
TS-10-3.03.0
TS-10-3.53.5
TS-10-4.04.0
TS-10-4.54.5
TS-10-5.05.0
TS-10-5.55.5
TS-10-6.06.0
TS-10-7.07.0
TS-10-8.08.0
TS-10-9.09.0
TS-10-10.010.0


PDF파일(15KB)
